Stainless Steel Flexible Hoses:
Stainless steel flexible hoses are widely used to safely convey liquids, gases, oils chemicals, and steam under high pressure and extreme temperatures. Hoses are designed to accommodate movement, absorb vibration, and correct misalignment
subset-flex® stainless steel hose assemblies are manufactured and tested as per International standard EN ISO:10380

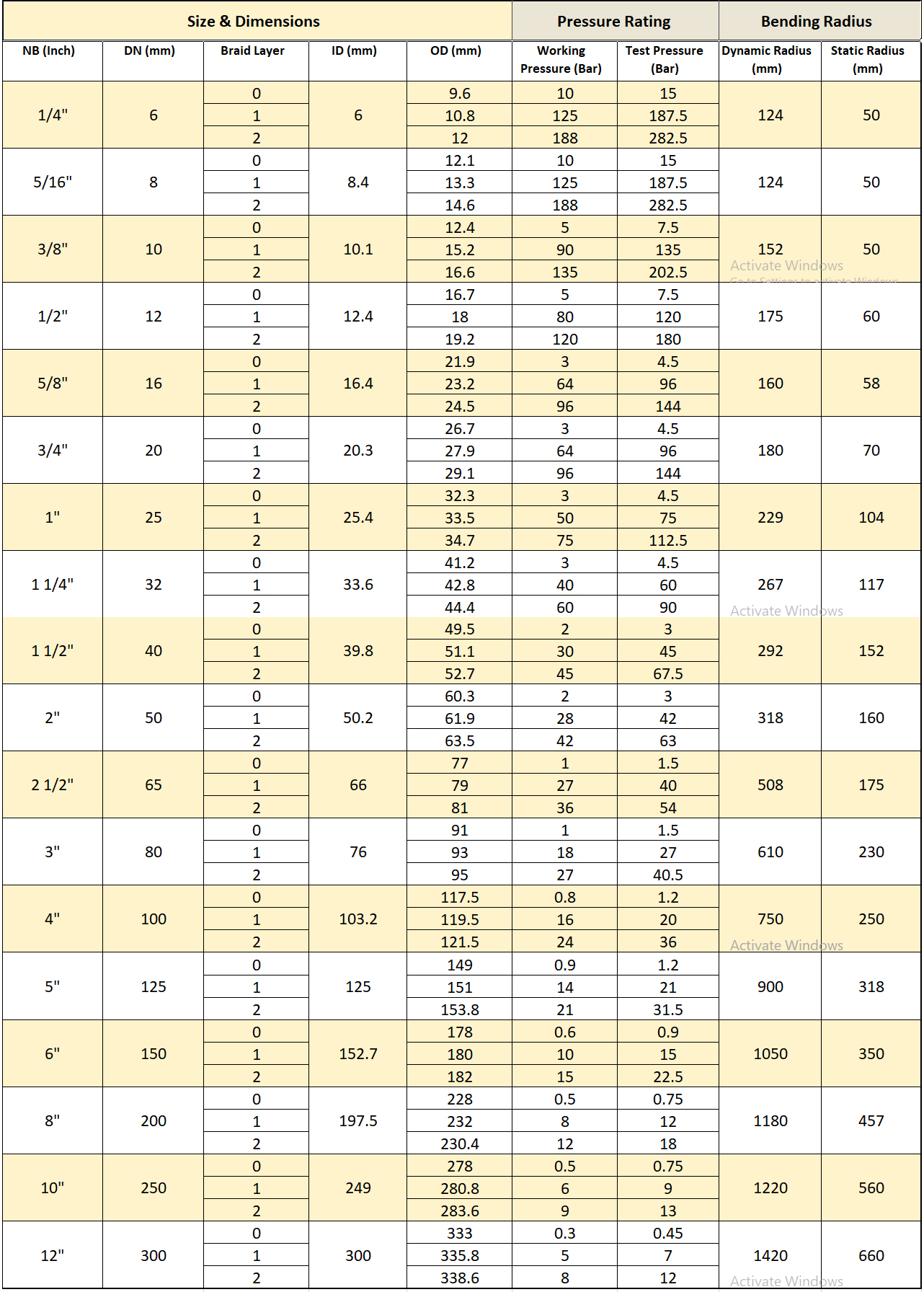

| Size (NB) | DN 6 mm (¼” NB) to DN 300 mm (12” NB) |
| Pressure | Up to 200 Bar depend on size |
| Temperature | (-) 260 0C to (+) 600 0C |
| Steel Grades | AISI SS 304 (DIN EN 1.4301) AISI SS 316L(DIN EN 1.4404) AISI SS 321 (DIN EN 1.4541) |

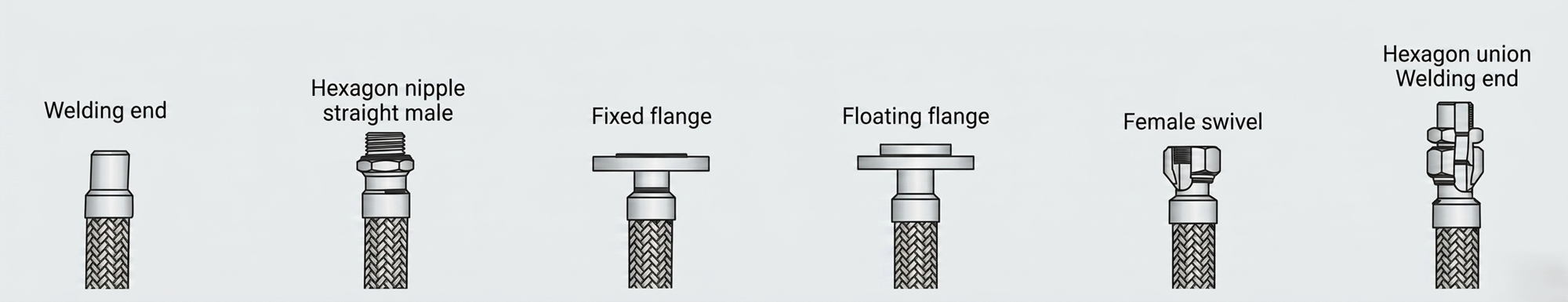

| Common End Fittings | Threaded Connectors Flange Ends Quick Connectors Weld Plain End Other-as per customer requirements |
| Quality & Testing | Hydrostatic testing Pneumatic testing Dye penetrant testing Visual & dimensional inspection Other testing (Fatigue/Burst Pressure/Bend radius etc,) as per customer’s requirements |
