Hydraulic Hoses

Subset Engineering Private Ltd offer complete range of Hydraulic Hoses

Size from 1/4” through to 3” and we carry large stocks of hydraulic Hoses and fittings confirming to International Standard.

Descriptions Braiding Standard
Hydraulic Hoses - Low Pressure Wire Braids- 01 nos SAE100R1 & EN 853 1SN
Hydraulic Hoses – Medium Pressure Wire Braids- 02 nos SAE100R2 & EN 853 2SN
Hydraulic Hoses – High pressure Wire braids- Multi spiral SAE 100 R12 & EN 856 4SP
Hydraulic Hoses – Very High pressure Wire braids- Multi spiral SAE 100 R13, R15 & EN 856 4SH
Hydraulic Hose – Low Pressure Yarn braiding SAE100 R3 & R6

Teflon (PTFE) Hoses

Smooth & Corrugated Bore Teflon Hoses (PTFE),

Confirm to SAE 100 R14

Sizes: 6.7 mm to 26.10 mm ID

Service temp. range: up to 2600C

Thermoplastic Hoses

Thermoplastic Hoses

confirm to SAE 100 R7 & R8

Sizes: 6.7 mm to 26.10 mm ID

Industrial Hoses

  • Pneumatic Hoses ¼" to 2.1/2" ID
  • Jet wash hose ¼" to 3/4" ID
  • Sand Blast Hoses ¾" to 2" ID
  • Petroleum transfer Hoses 5/8” through 1” ID
  • Carbon Free hose for furnace coolant application ½" to 2" ID
  • Concreate Pump Hose 2” to 6”
  • Oil Suction Hose 2” to 8”
  • Water Suctions Hose 2” to 8”

CNG Transfer & Refuelling Hoses

High Pressure Hose suitable for CNG Transfer and refuelling applications.

Hose Meets applicable requirements for ISO:15500-17 & SAE J517 (100 R8)

Size: ¼” to 1”

Temp. range: -400C to + 700C

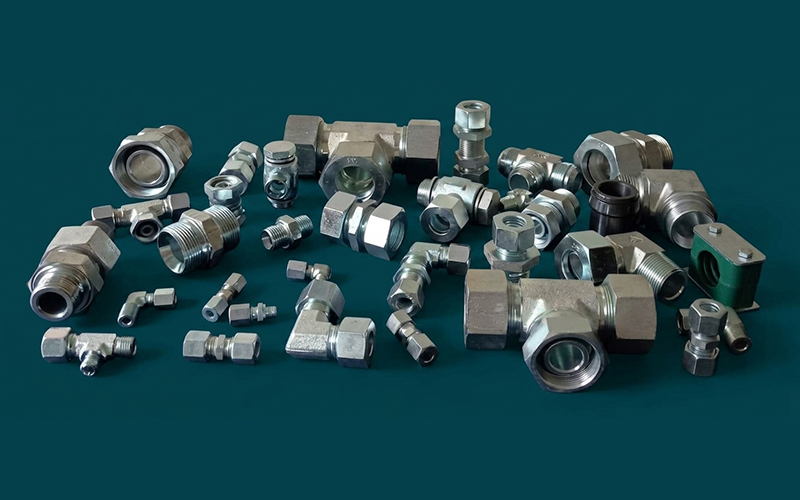

Hydraulic Fittings:

Hydraulic fittings are essential, leak-proof components engineered to connect hydraulic hoses, pipes, and tubes safely within fluid power systems. We maintain a good inventory of standard hydraulic fittings and connectors to cater our customers’ requirements on time

Hydraulic fittings range include (Light & Heavy Series)

Equal Fittings: Straight Couplings II Equal Elbow II Equal TEE II Bulk Head Coupling Male Stud Coupling II Stand Pipe Adopter II Elbow Connectors II Swivel Elbow Adjustable Elbow II Swivel Run Tee II Swivel Branch Tee II Benjo Connector II Tube Reducer (KOR) II Un-Equal Straight Coupling II Swivel Reducer II Adopters

HIGH PRESSURE HYDRAULIC HOSESTANDARD: SAE-100 R1 / EN 853 1SN
Hose ID Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius

Application:
Used for medium pressure hydraulic oil lines.

Tube:
Oil resistant synthetic rubber.

Reinforcement:
One braid of high tensile steel wire.

Cover:
Oil & abrasion resistant synthetic rubber.

Temp. Range:
(-) 40 to (+) 100 0C

End Fittings:
As per customers' requirements.
Inch mm mm PSI Bar PSI Bar mm
3/16 4.8 11.5 3600 250 14500 1000 90
¼ 6.4 13.2 3250 225 13000 900 100
5/16 7.9 15.0 3100 215 12480 860 115
3/8 9.5 17.3 2600 180 10440 720 130
½ 12.7 20.6 2325 160 9280 640 180
5/8 15.9 23.9 1900 130 7540 520 200
¾ 19.1 27.6 1525 105 6080 420 240
1 25.4 35.3 1300 90 5100 350 300
1-1/4 31.8 43.2 925 63 3660 250 420
1-1/2 38.1 50.7 725 50 2900 200 500
2 50.8 64.2 600 40 2320 160 630
HIGH PRESSURE HYDRAULIC HOSE STANDARD: SAE-100 R2 / EN 853 2SN
Hose ID Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius

Application:
Used for high pressure hydraulic oil lines.

Tube:
Oil resistant synthetic rubber.

Reinforcement:
Two braid of high tensile steel wire.

Cover:
Oil & abrasion resistant synthetic rubber.

Temp. Range:
- 40 to + 100 0C

End Fittings:
As per customers' requirements.
Inch mm mm PSI Bar PSI Bar mm
¼ 6.4 14.9 5800 400 23200 1600 100
5/16 7.9 16.7 5000 350 20300 1400 115
3/8 9.5 19.1 4800 330 19140 1320 130
½ 12.7 22.1 4000 275 15960 1100 180
5/8 15.9 25.3 3625 250 14500 1000 200
¾ 19.1 29.6 3100 215 12480 850 240
1 25.4 37.7 2400 165 9560 660 300
1-1/4 31.8 47.7 1825 125 7240 500 420
1-1/2 38.1 54.0 1300 90 5220 360 500
2 50.8 67.5 1175 80 4640 320 630
MEDIUM PRESSURE HYDRAULIC HOSE STANDARD: SAE-100 R3 / EN 854
Hose ID Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius

Application:
Used for medium pressure hydraulic oil lines, anti-freeze solutions or water.

Tube:
Black synthetic rubber.

Reinforcement:
Two braid of high tenacity synthetic textile yarn.

Cover:
Synthetic rubber.

Temp. Range:
- 40 to + 100 0C

End Fittings:
As per customers' requirements.
Inch mm mm PSI Bar PSI Bar mm
¼ 6.4 14.5 1250 86 5000 345 75
5/16 7.9 17.5 1200 83 4800 332 100
3/8 9.5 19.1 1125 78 4500 312 100
½ 12.7 23.9 1000 69 4000 276 125
5/8 15.9 27.0 875 61 3500 244 130
¾ 19.0 31.8 750 52 3000 208 150
1 25.4 38.1 565 39 2250 156 200
MEDIUM PRESSURE HYDRAULIC HOSE STANDARD: SAE-100 R6 / EN 854
Hose ID Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius

Application:
Used for hydraulic oil lines, heavy duty transmission oil cooler lines, glycol anti-freeze solutions. It has special resistant to diesel permeation.

Tube:
Black Synthetic rubber.

Reinforcement:
One braid of high tenacity synthetic textile yarn.

Cover:
Oil & abrasion resistant synthetic rubber.

Temp. Range:
- 40 to + 135 0C

End Fittings:
As per customers' requirements.
Inch mm mm PSI Bar PSI Bar mm
¼ 6.4 12.7 400 28 1600 110 65
5/16 7.9 14.2 400 28 1600 110 75
3/8 9.5 16.0 400 28 1600 110 75
½ 12.7 19.8 400 28 1600 110 100
5/8 15.9 23.1 350 24 1400 97 125
¾ 19.1 26.9 300 21 1200 83 138
1 25.4 33.5 250 17 1000 69 165
SPIRAL HOSES-VERY HIGH-PRESSURE STANDARD: SAE-100 R12 / EN 856 4SP
Hose ID Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius

Application:
Used for very high-pressure hydraulic applications. It has excellent impulse life.

Tube:
Black oil resistant synthetic rubber.

Reinforcement:
Four layers of alternated, spiraled high tensile steel wire.

Cover:
Oil resistant synthetic rubber.

Temp. Range:
- 40 to + 120 0C

End Fittings:
As per customers' requirements.
Inch mm mm PSI Bar PSI Bar mm
3/8 9.5 20.3 4000 276 16000 1104 62
½ 12.7 23.9 4000 276 16000 1104 87
¾ 19.0 30.7 4000 276 16000 1104 120
1 25.4 38.1 4000 276 16000 1104 150
1-1/4 31.8 47.0 3000 207 12000 828 207
1-1/2 38.1 53.0 2500 172 10000 690 500
2 50.8 66.8 2500 172 10000 690 625
SPIRAL HOSES - VERY HIGH-PRESSURE STANDARD: SAE-100 R13 / EN 856 4SH
Hose ID Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius

Application:
Used for extremely high-pressure hydraulic applications. Exceeds one million Impulse cycles.

Tube:
Black oil resistant synthetic rubber.

Reinforcement:
Four layer of alternated spiraled, high tensile steels wire.

Cover:
Oil resistant synthetic rubber.

Temp. Range:
- 40 to + 120 0C

End Fittings:
As per customers' requirements.
Inch mm mm PSI Bar PSI Bar mm
½ 12.7 23.9 5000 345 20000 1380 175
5/8 15.9 28.2 5000 345 20000 1380 212
¾ 19.1 32.0 5000 345 20000 1380 237
1 25.4 38.9 5000 345 20000 1380 300
1-1/4 31.8 50.0 5000 345 20000 1380 142
1-1/2 38.1 57.4 5000 345 20000 1380 500
2 50.8 71.1 5000 345 20000 1380 625
SMOOTH BORE TEFLON (PTFE) HOSESSTANDARD: SAE 100 R14
Hose ID Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius

Application:
These hoses are available for used where electrically resistive fluids are being transferred at high flow rates.

Tube:
The PTFE Hose Core is manufactured from Teflon / PTFE (Polytetrafluoroethylene).

Braiding:
one or two braiding of steel wire (BS970-1/1996 quality).

Service Temp. Range:
- 60 to + 260 0C

End Connections:
As per customers' requirements
Inch mm PSI Bar PSI Bar mm
6.70 10.06 3330 230 10000 689 76
8.40 11.75 3000 207 9000 621 102
10.0 13.35 2660 183 8000 552 127
13.5 16.75 2330 161 7000 483 152
16.6 20.07 1660 114 5000 345 178
19.8 23.15 1500 103 4500 310 203
22.1 25.53 1330 92 4000 276 229
26.1 29.45 1160 80 3500 241 305
Advantages of Teflon Hoses over Rubber Hoses:
*A wide operating Temp. range, *Inert to virtually all chemicals, *Non-flammable,
*Resistance to weather/ageing, *Light weight, *Solvent resistant, *Long life, *Highly Flexible
INDUSTRIAL HOSES
SN Item Technical specifications

Application:

ID Size (mm) W.P. Kgf/cm2 B.P. Kgf/cm2
01 Rubber Hose for Air/Pneumatic/ Rock Drilling IS:446 Type-1,2,3 ISI Marked 12.5 to 75 7, 10, 14 28, 40, 56

Type 1 & 2 Hoses used with compressor for passing Air /Pneumatic pressure in the Industry.
Type-3 Hose Used for Rock Drilling Purpose

02 Rubber Hose for Steam IS:10655 Type-1 & 2 10 to 50 10 100

Used for conveying saturated steam at a specified pressure.
03 Rubber Hose for Sand shot Blasting IS:5894 Type-1 & 2, ISI Marked 20 to 75 7, 10 35, 50

This hose is used for sand/shot blasting applications for conveying
Sand and other abrasive materials at high velocity in heavy engineering Industries.

04 Carbon Free Heat Resistant Cable coolant rubber hose 12.5 to 75 10 40

This hose is used in electrical furnaces to protect the electrical cable and it is resistant to heat, radiation and splashes of hot metal.
THERMOPLASTIC HYDRAULIC HOSE STANDARD: SAE 100 R7
Hose ID Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius

Application:
Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water-based fluids in Hydraulic systems. Suitable for Agricultural machinery, Earthmoving etc.

Tube:
Thermoplastic Elastomer.

Reinforcement:
Single Braid of Synthetic Fiber.

Cover:
Polyurethane, Black Color, Pin pricked.

Temp. Range:
(-) 54°C to (+)100°C
Inch mm mm PSI Bar PSI Bar mm
3/16 4.6 11.4 3045 210 12180 840 90
¼ 6.2 13.7 2780 192 11120 768 100
5/16 7.7 15.6 2535 175 10140 700 115
3/8 9.3 18.4 2275 157 9100 628 125
½ 12.3 22.5 2030 140 8120 560 180
5/8 15.5 25.8 1520 105 6080 420 205
¾ 18.6 28.6 1260 87 5040 348 240
1 25 36.7 1015 70 4060 280 300
Thermoplastic Hose Properties:
Excellent Kick Resistance; Electrically Nonconductive; Non-Perforated Cover.
THERMOPLASTIC HYDRAULIC HOSE STANDARD: SAE 100 R8
Hose ID Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius

Application:
Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water-based fluids in Hydraulic system.

Tube:
Thermoplastic Elastomer.

Reinforcement:
One or more Braids of Aramid Fiber.

Cover:
Polyurethane, Black Color, Pin pricked.

Temp. Range:
(-) 54°C to (+)100°C
Inch mm mm PSI Bar PSI Bar mm
1/8 3.4 10.5 6090 420 24000 1680 25
3/16 4.6 14.6 5075 350 20000 1400 90
¼ 6.2 16.8 5075 350 20000 1400 100
3/8 9.3 20.3 4060 280 16000 1120 125
½ 12.3 24.6 3550 245 14000 980 180
5/8 15.5 29.8 2784 192 11600 800 205
¾ 18.6 33 2280 157 9200 660 240
1 25 38.6 2030 140 8000 560 300
1.1/4 31.8 42 1500 100 6000 400 350
Thermoplastic Hose Properties:
Excellent Kick Resistance; Electrically Nonconductive; Light weight.
